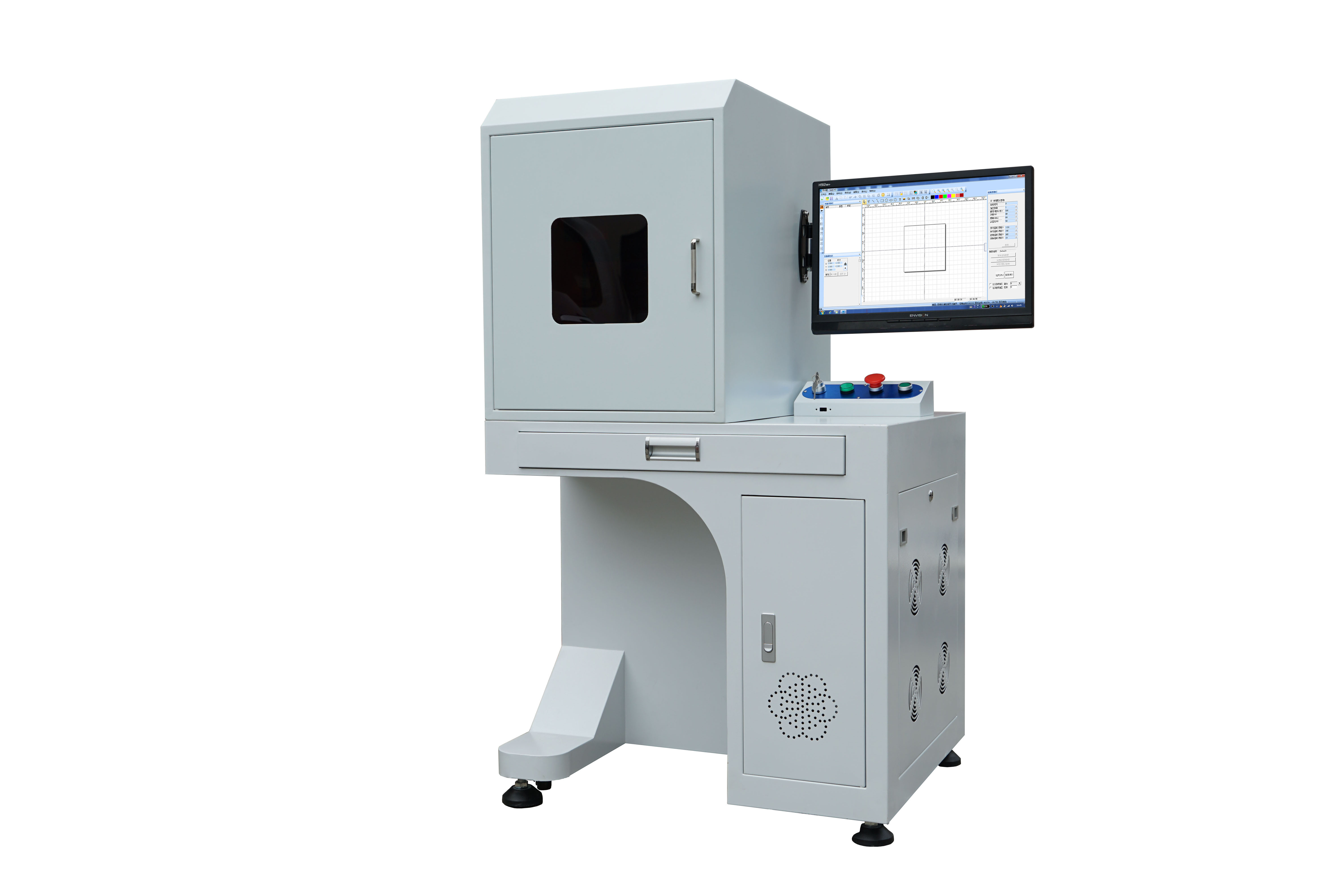

System Characteristic:
Fiber laser has excellent beam quality and high precision marking ;
The workbench is equipped with operating platform, which is widely used in factory, workshop etc;
Totally enclosed design, small size, high speed marking, high repeat positioning accuracy;
Without any daily maintenance for the laser, and working time is up to 100000 hours;
No consumables, low power consumption less than 600W, greatly saving electricity bills.
Application Field:
Widely used in electronics, computer, hardware, clocks and watches, and various tools, etc, where it has high requirements to the depth, smoothness and precision. Usually applies to laser marking on both metal materials such as stainless steel, high speed steel, alloy steel, iron, aluminum & aluminum alloy and other non-metallic materials like ABS, PC, etc.
Product performance parameters
|
Model |
XG-FL-20 |
XG-FL-30 |
XG-FL-50 |
|
Laser Power |
20W |
30W |
50W |
|
Beam Quality |
m2<1.6 |
m2<1.6 |
m2<2.0 |
|
Repetition Frequency |
20K-80KHz |
30K-80KHz |
50K-120KHz |
|
Laser Wavelength |
1064nm |
1064nm |
1064nm |
|
Marking Field |
110mm´110mm |
110mm´110mm |
110mm´110mm |
|
Marking Depth |
£1.2mm |
£1.5mm |
£2.0mm |
|
Marking Line Speed |
£14000mm/s |
£14000mm/s |
£14000mm/s |
|
Minimum Line Width |
10um |
10um |
10um |
|
Minimum Character |
0.15mm |
0.15mm |
0.15mm |
|
Repetition Precision |
¡À0.005mm |
¡À0.005mm |
¡À0.005mm |
|
Power Consumption |
£600W |
£800W |
£1000W |
|
Maintenance-free Time |
100000 Hours |
100000 Hours |
100000 Hours |
|
Input Power |
Single Phase 110V/220V/50-60Hz |
|
Cooling Method |
Air Cooling |
Air Cooling |
Air Cooling |
|
