Equipment Introduction:

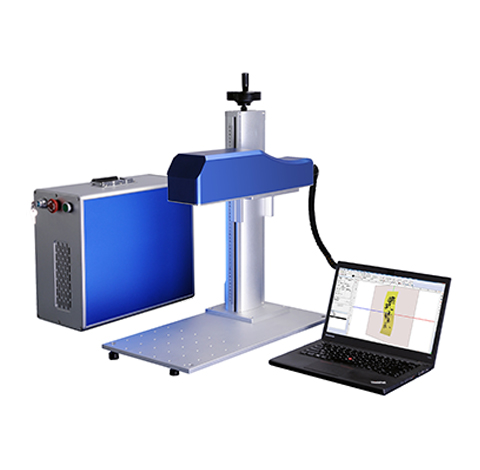

XG-3DFL series dynamic focusing fiber laser marking machine can be applied to any curved surface、sphere、step and irregular surface;
The laser focal length can be changed through the focusing axis, can also realize deep carving, to meet all 3D marking requirements;
Equipped with MM3D dynamic focus control software designed by Eastern Logic Inc, to realize high precise marking on any shaped objects.
System Characteristic:
The max marking field is 700x700mm, the max scan height is 180mm;
The galvanometer scanner focus beam size is 50mu, response speed can meet precision filling up to 5000mm/s;
Support 3D model importing, and 2D graphics can be directly coated or projected on the built-in commonly used curved surface;
Adopted the integrated structure, small size, fine sealing, to ensure the stability of long time working.
Product Performance Parameters
|
Model |
XG-3DFL-20 |
XG-3DFL-30 |
XG-3DFL-50 |
|
Laser Power |
20W |
30W |
50W |
|
Pulse Energy |
1.2MJ |
1.3MJ |
1.5MJ |
|
Repetition Frequency |
20K-80KHz |
30K-80KHz |
50K-120KHz |
|
Laser Wavelength |
1064nm |
1064nm |
1064nm |
|
Marking Field |
≤300mm´300mm |
≤400mm´400mm |
≤700mm´700mm |
|
Minimum Line Width |
50um |
50um |
50um |
|
Marking Speed |
≤6000mm/s |
≤6000mm/s |
≤6000mm/s |
|
Support Font |
TrueType Font,AUTOCAD Single Line font,Custom Font |
|
One-dimensional barcode |
CODE39/CODE128/ITF/CODABAR/EAN/UPC,etc. |
|
Two-dimensional barcode |
QR/PDF417/DataMatrix(ECC200),etc. |
|
Input File |
PLT/DXF/DWG/BMP/JPG/JPEG/PNG/TIF,etc. |
|
3D Model |
Support STL Format |
|
Input Power |
Single Phase 110V/220V/50-60Hz |
|
Overall Power Consumption |
≤600W |
≤800W |
≤1000W |
|
Cooling Method |
Air Cooling |
Air Cooling |
Air Cooling |
|
Control Interface |
USB2.0 |
USB2.0 |
USB2.0 |
|
